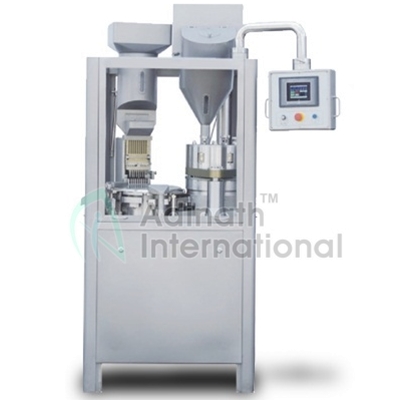

High Speed Automatic Capsule Filling Machine

High Speed Automatic Capsule Filling Machine

We took the best concepts from the past and created the High Speed Automatic Capsule Filling Machine, which is specifically built to satisfy the highest capsule production demands. With its simple operation and low set-up and downtimes during format changes and cleaning, the ACF-150 machine model is noteworthy.

For improved accuracy, the powder dosage incorporates tamping pin technology. The machine is built for precision and can fill firm gelatin capsules in sizes ranging from 00 to 5.

ACF-150 model allows for up to three different dosage combination fills, such as powders, pellets, tablets, micro-tablets, powder mixes, or active substances.

A programmable logic controller with a touch-enabled human interface and a very user-friendly operable front end controls the machine.

Being a reputed Automatic Capsule Filling Machine Manufacturer - Adinath International Provide Automatic capsule Filling Machine, Semi Automatic Capsule Filling Machine, Capsule Filling line Machine.

Salient Features of High Speed Automatic Capsule Filling Machine

• cGMP design with emphasis in powder dust handling: Enclosed with main turn table avoid dust getting into mechanical parts of machine.
• Filling Weight Accuracy ±2%
• Enclosed dosing system with dust suction reduces cleaning frequency.
• Vacuum cleaning station for segment cleanup in each cycle.
• Efficient capsule separation by means of vacuum.
• “Siemens” Make Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
• Precision capsule segments and dosing disk minimizes adjustments following parts changeover.
• Stainless Steel 304 frames and transparent safety interlock guards.
• Accurate capsule separation without damaging capsule with wide range of different capsules.
• Automatic rejection system for Non – separated/ improperly inserted capsule top caps.
• Quick Fill weight adjustments and high precision dosing tools ensures optimum machine efficiency

Technical Specification for High Speed Automatic Capsule Filling Machine:
