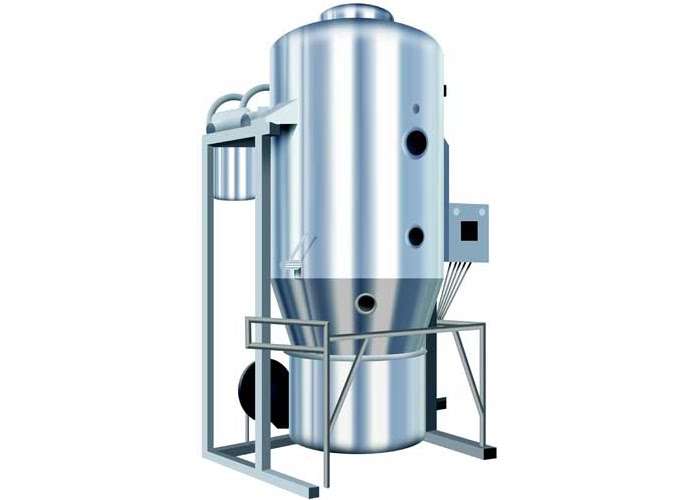

Fluid Bed Dryer

Fluid Bed Dryer Manufacturer

We are a leading manufacturer, exporter, and supplier of a wide range of Fluid Bed Dryers that take less time to dry than previous models. Our Fluid Bed Dryer is based on the most recent GMP guideline concept and is built using the highest quality raw materials in accordance with established business benchmarks. This Fluidized Bed Dryer is known for enhanced execution, flexible business alternatives, and stringently maintained an eye on several predefined parameters. If you have any questions about Fluid Bed Dryer, please send us an email and one of our executives will contact you.

Construction of the Machine

The Fluid Bed Dryer is useful for drying chemicals quickly. It is uses in a variety of industries, including pharmaceuticals, food, and others. Powder, coarse, granular, or crystalline materials are all possible.

It consists of a blower that blows fresh air into the product bowl via heaters at the bottom of the bowl and a perforated plate. Turbulence is created by hot air raising and expanding the material bed. Fluidisation is the term for this phenomenon. Fluidisation takes the shape of a fluid bed in the bowl.

The conditions are optimal for drying because fluidisation causes complete agitation of the solid particles and maximises heat transfer. As a result, the material dries quickly. To keep particulates from escaping the dryer, filter bags are provided.

Fluid Bed Dryer Salient Features

• Pre air filtration by 20 micron filters and secondary by 5 micron
• Final air through HEPA (0.3 micron) filters as an optional features
• 65% open perforated air distribution plates along with Dutch weave mesh.
• Explosion relief disk
• All Contact parts made from Stainless Steel 304 or Stainless Steel 316 as per customer's requirement.
• Manufacturing as per cGMP guidelines
• Complete elimination of static charge by safe earthing system
• Uniform Drying at low temperature
• Fan motor unit & filtration unit can be placed in remote areas
• Heating mode could be electrical / steam/ thermic fluid
• Uniform drying
• Rapid exchange of Granules
• Safe earthing arrangement with low voltage relay./li>
• Solid flow sensor monitor for monitoring the leakage in the air discharge filters.
• "PLC" based power panel with "MMI" based operating panel for process automation.
• Food grade silicon gasket set.
• Facility of mounting of blower with motor & heating chamber with air filteration unit out side the granulation room.
• Pneumatically operated inlet and outlet dampers.
• All stainless steel model including all fabrications
• External and internal finishes of glass beading or polishing
• Heating / Cooling / Internal pressure
• Vacuum available for de-aerating or to assist in drying
• Internal spray systems for coating or moisturising
• Direct vacuum, direct drum, conveyor loading
• Dust-free direct vacuum loading
• Inverter controlled automatic cone positioning
• CE and ATEX certified models available
• Capacity: 5 Liters to 5000 Liters
• Applications:

The gentle mixing action & high speed tumbling make this the ideal blender for:

Blending, Drying, Sterilising, Agrochemicals, Pharmaceuticals, Plastic powders, Nutraceuticals, Pigments, Detergents, Breakfast cereals, Ceramic powders, Vitamins and minerals, Food, Spices, Herbs, Plastic granules, Metal powders.
