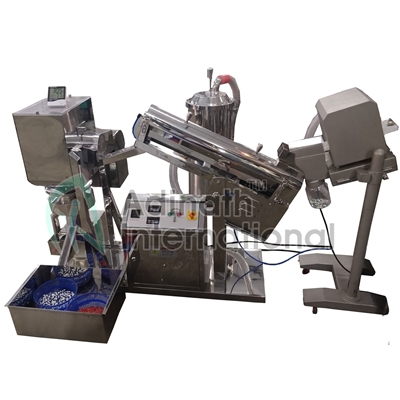

Capsule Filling Line Machines
Construction of Machine
Capsule Line Machines are the key machines for the capsule filling line with latest Capsule Filling Machine With Line Machine in our range which provide output of 45,000 capsules/hour. Interestingly this capsule line is adaptable with all sizes of capsules with powder, pellets and granules.
Innovative features, sturdy design and easy to use approach is USP of Adinath capsule filling line. It's unique arrangement with precision gathering meets the essence of cGMP guidelines. Our CAPSULE FILLING LINE having combination of Semi Automatic Capsule Filling Machines and Granulation Line Machine.
1. Automatic Capsule Polishing Machine
| Model No. | AI-CPM |
|---|---|
| Production Output | Up to 90,000 capsules/hour |
| Power Supply | 1 H.P. |
| Electricals | 380/440 Volts, 3 Phase, 50 Hertz |
| Overall Dimension | 915 mm X 356 mm X 915 mm |
| Net Weight | 60 Kgs. approx. |
| Gross Weight | 100 Kgs. approx. |

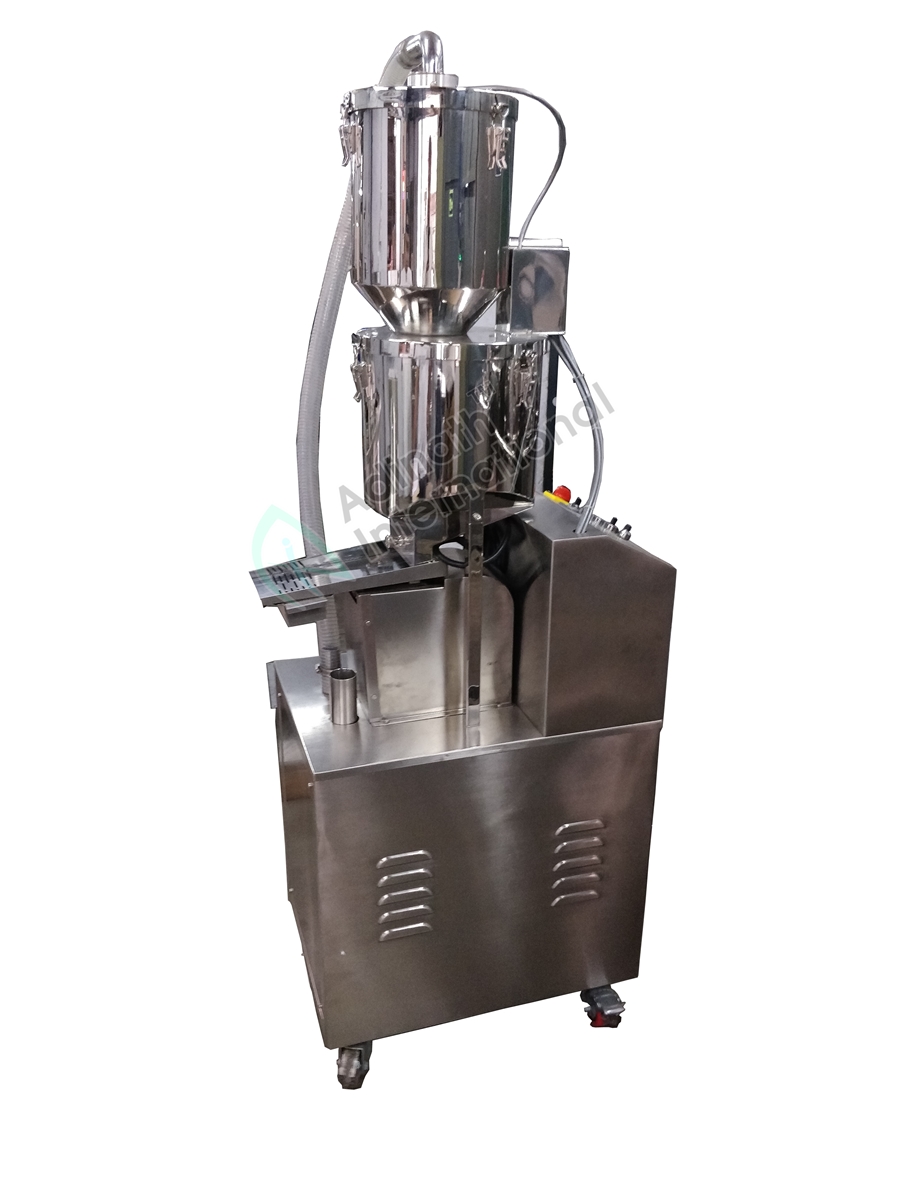

2. Capsule Conveying System:
| Model No. | AI-CT |
|---|---|
| Production Output | Up to 60,000 capsules/hour |
| Power Supply | 2 H.P. |
| Electricals | 380/440 Volts, 3 Phase, 50 Hertz |
| Overall Dimension | 635 mm X 500 mm X 1630 mm |
| Net Weight | 150 Kgs. approx. |
| Gross Weight | 185 Kgs. approx. |

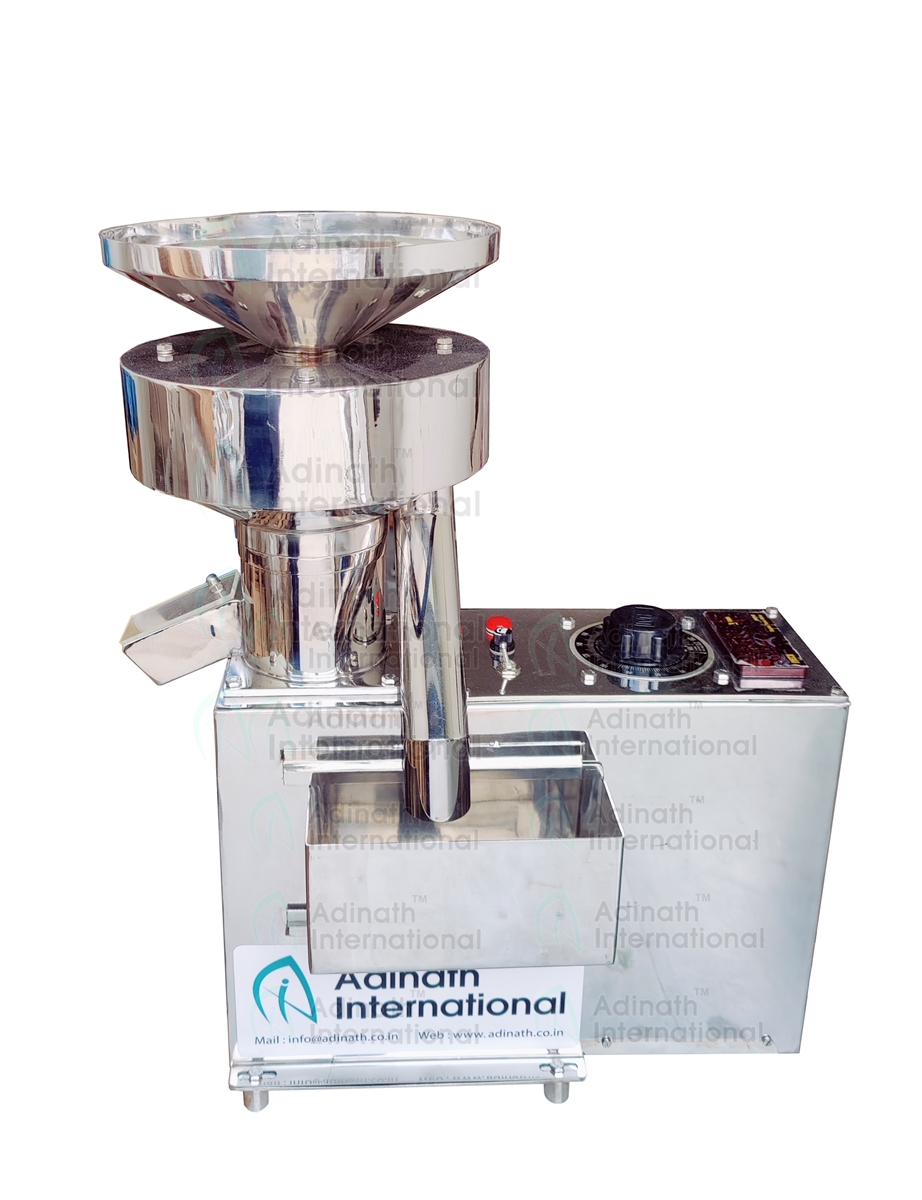

3. Empty Capsule Ejection
| Model No. | LE-CE |
|---|---|
| Production Output | Up to 90,000 capsules/hour |
| Electricals | Blower |
| Overall Dimension | 225 mm X 450 mm X 550 mm |
| Net Weight | 35 Kgs. approx. |
| Gross Weight | 50 Kgs. approx. |
4. Dust Extractor
| Model No. | ADE |
|---|---|
| Vacuum Flow | 100 CFM |
| Power Supply | 2 H.P |
| Electricals | 380/440 Volts, 3 Phase, 50 Hertz |
| Overall Dimension | 580 mm X 465 mm X 1195 mm |
| Net Weight | 110 Kgs. approx. |
| Gross Weight | 140 Kgs. approx. |
