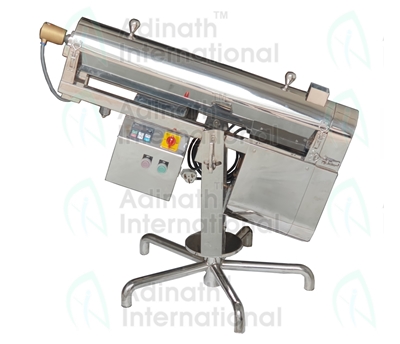

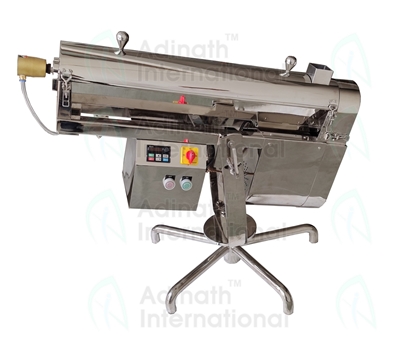

Automatic Capsule Polishing Machine

Construction of Machine

Automatic Capsule Polishing Machine having specially designed rotating brush to thorough cleaning of capsules. Capsules are fed in polishing chamber in bulk where rotating spiral brush removes the sticked powder particles from the outer surface of capsules. Polishing chamber is connected to a vacuum cleaner in order to suck the de-dusted powder. Air purging arrangement provided to spread powder in atmosphere, so that vacuum cleaner can suck the powder easily. This process improve polishing quality of Capsules.

Salient Features for Automatic Capsule Polishing Machine

• Contact parts with of capsules made from Stainless Steel 316 or 304 as per requirements.
• Whole polishing chamber lined with nylon net.
• Polishing chamber inclination can be adjusted as per site requirements.
• Provision of purified air for thourough cleaning.
• No change parts required for capsule size change over.
• Easy to dismantle and reassemble withour use of any tool.
• For sack of maintenance just periodic cleaning reuires.
• Compact in size occupies minimum floor area and easy to move.
• Mounted on stand with lockable type PU wheels through which it can be freely movable within unit.
