Automatice Capsule Counting & Filling Machine
Construction of Machine
Automatic Capsule Counting and Filling Machine is suitable for counting and filling of capsules in bottles, jars & other containers. Machine widely applied in Pharmaceutical, Neutraceuticals, Cosmetics, Herbal and Ayurvedic industries for counting capsules. Machine offered in output capacity ranging from 30 to 250 bottles per minute.
Capsule Counting & Filling Machine also known as Tablet Counting Machine performs disc based counting operation which ensure perfect number of capsule count each time. We have small hand capsule counter as well as conveyor belt type capsule counting machine in our range.
Complete frame is made from Stainless Steel 304 materials to comply as per cGMP requirements.
The vacuum system, which is integrated with the filler and located beneath the hopper, ensures a dust-free flow of stocks to the containers. When counting uncoated pills, the mechanism ensures that the disc runs efficiently and smoothly.
Salient Features for Automatic Capsule Counting Machine
- Disc based counter with prcisely encountered holes
- Euipped with advanced vibration and multi-channel feeder
- Computer control with active image counting (optional)
- Automatic transportation of bottles with slat type conveyor
- Automatically check fill count with automation inbuilt package (optional)
- Automatically Stop System upon cycle completion.
- Easy to set change parts for different size capsules & bottles.
- Higher fill accuracy in counts.
- Safety cabinet with laminar air flow can be incorporated upon specific request.
- Intellectual touch screen control system with PLC control panel. (optional)
- Stable operation with lower noise.
- Easily dismantle with minimum efforts.

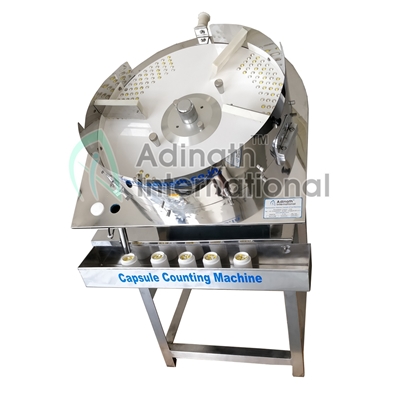

Construction of Machine
Semi Automatic Disc type Capsule Counting Machine is compact machine model suitable for almost every encapsulation operation in pharmaceuticals. Machine is simple to use that even a semi skilled operator can run it easily. Design of the Machine is ergonomic, easy to maintain and clean for operators. Sturdy deaign with trouble free operations and accurate results to maintain GMP standards.
Salient Features of Semi Automatic Capsule Counting Machine
- Each disc is individually developed and manufactured to match the needs of the customer.
- The machine has an adjustable filler that can be raised from 20 to 25 degrees to make it easier for the items to enter the disc holes.
- The machine is equipped with high-quality delivery chutes that route product from the counting disc into stainless-steel filler tubes of various sizes to fit various containers.
- It is designed to function on three-phase ac and is powered by a one-horsepower, 1440 rpm motor with variable speed drive.
- Sturdy structure made with heavy duty MS angles.
- Simple operation requires only one operator, and operational instruction takes about 10 minutes.
- One countable type disc is included with the unit.
- G.M.P. model: the machine's body is made of M.S. and is encased in SS sheet.
Technical Specification for Semi Automatic Capsule Counting Machine
- Contact Parts: Stainless Steel 316.
- Power consumptions: 1 H.P.
- Air Consumption: 40 Litre/minute@ 6 bar pr.
- Power supplyA.C. 3 Phase, 440 V, 50 Hz Motor 1440RPM
- Packing Case Dimension 1000 (L) X 950 (W) 1050 (H) mm
- Net Weight: 80 Kgs. approx.
- Gross Weight: 150 Kgs. approx.
