Vibro Sifter Manufacturers

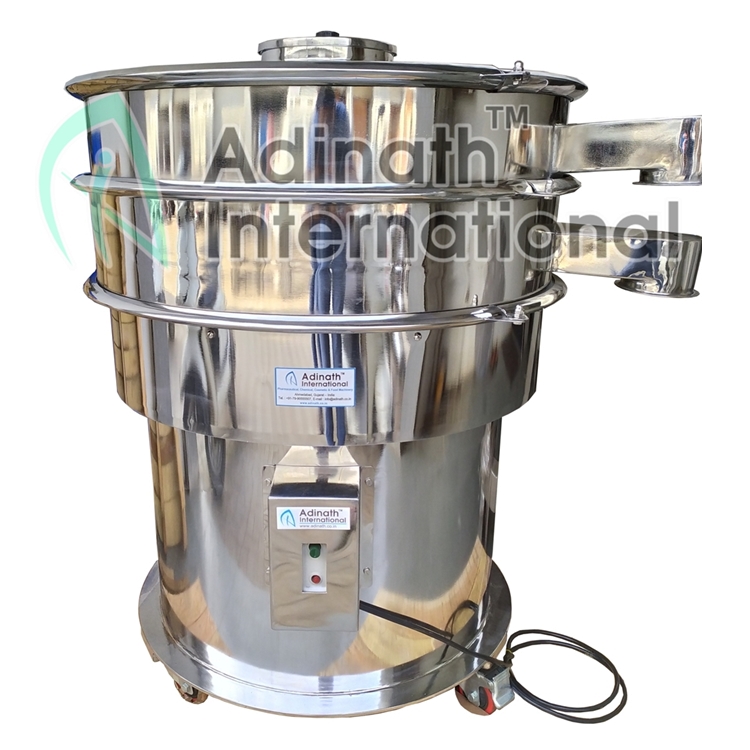

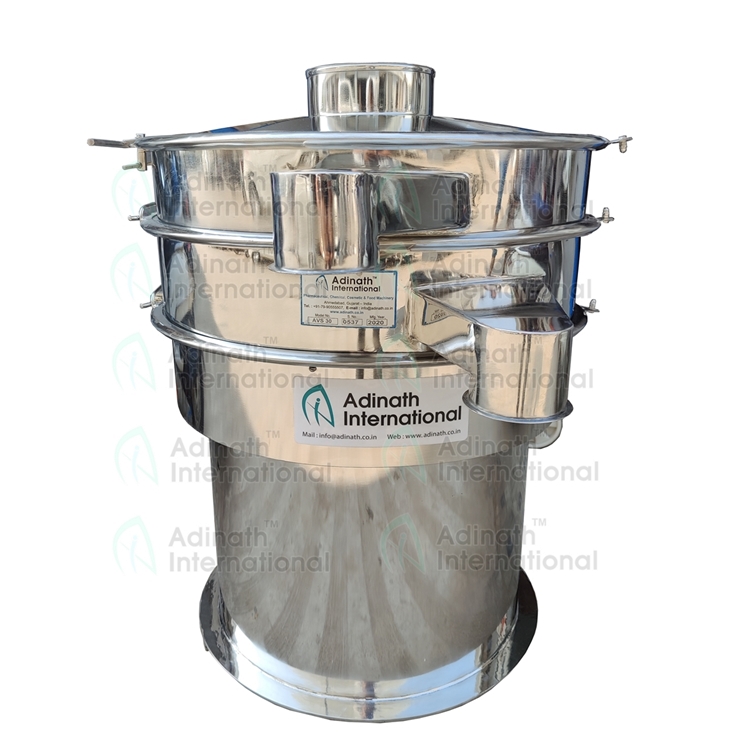

Vibro Sifters are circular unitary gyratory screens uses to separate mass composition of solids from solids for gradation of materials as per particle size. Vibratory vibro separators having wide range of industrial applications. Vibro Sifter comprises of a specifically constructed motor that is vertically positioned in the centre of the screen's base plate. Between the feeding hopper and the bowl is a screen. The material is fed onto the upper screen's centre. During its journey to the periphery, the undersize substance travels quickly through the screen. The material of its own size is discharged constantly through a tangential exit. This is accomplished through the use of a specifically designed vibratory motor and eccentric Top and Bottom weights.

Salient Features of Vibro Sifters

• Sizes available in 12",20",30",36",48",72" etc
• Portable and compact design
• High degree of pharmaceutical finish
• Double Decker arrangement can be provided
• Easy dismantling and cleaning for contact parts
• All contact parts and screen of SS 304 AISI stainless steel material.
• Modular Design of decks with easily fitted clamps
• FDust free arrangement, Lead free sieves available
• Production output 50 to 200 Kgs/hr depend upon characteristic of material
• Wide range of screen sizes 4-300 Mesh
• Noiseless, Maintenance free & High speeds working.
• Standard machine are with TEFC motor explosion proof / flame proof motor material.
• Special requirement like brushing arrangements, Stainless Steel lid provided with charging port and spring loaded outlets.
• Double & Triple deck screens with outlet and hopper for bottom deck available on request.

Vibro Sifter Technical Specification:
